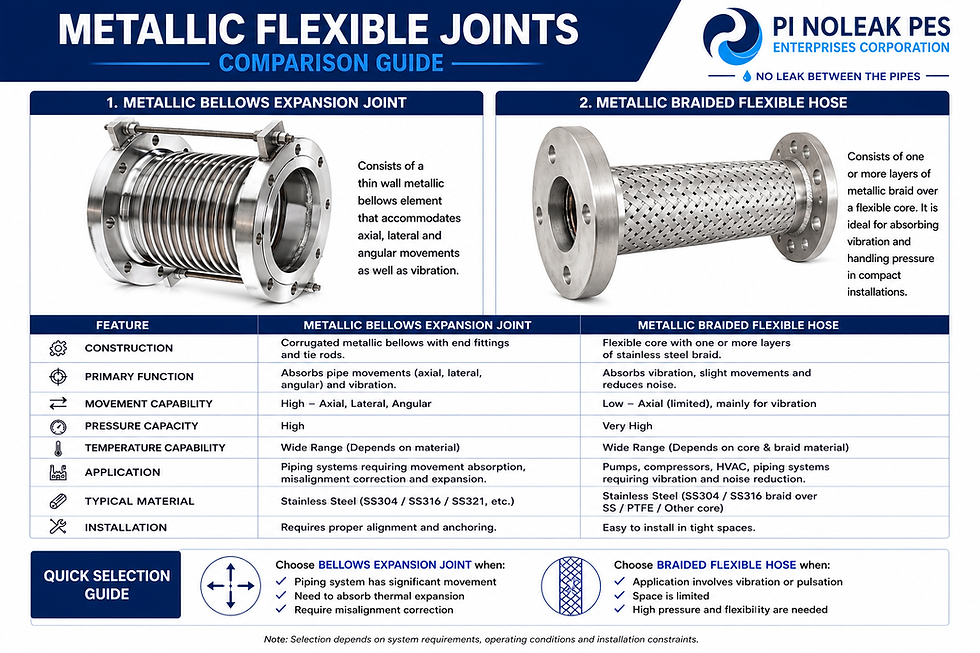

Metallic Bellows Expansion Joint vs Braided Flexible Hose: Which One is Right for Your System?
In industrial piping systems, selecting the correct metallic flexible joint is essential for ensuring long-term reliability, safety, and performance. Two of the most commonly used solutions are the Metallic Bellows Expansion Joint and the Metallic Braided Flexible Hose.
Although both components are designed to accommodate movement and protect piping systems, they serve different functions and are suited for different operating conditions.
What is a Metallic Bellows Expansion Joint?
A Metallic Bellows Expansion Joint consists of a corrugated stainless steel bellows with end fittings and tie rods. It is specifically engineered to absorb:
✅ Axial movement
✅ Lateral movement
✅ Angular movement
✅ Thermal expansion
✅ Pipe misalignment
Bellows expansion joints are widely used in power plants, water distribution systems, HVAC installations, petrochemical facilities, and industrial process piping where significant movement compensation is required.
Key Benefits
High movement absorption capability
Effective thermal expansion compensation
Helps reduce stress on pipes and equipment
Suitable for high-temperature applications
Long service life when properly installed
What is a Metallic Braided Flexible Hose?
A Metallic Braided Flexible Hose features a flexible core reinforced with one or more layers of stainless steel braid. The braid increases pressure capacity while maintaining flexibility.
These hoses are primarily used to:
✅ Absorb vibration
✅ Reduce noise transmission
✅ Accommodate minor movement
✅ Protect connected equipment
Braided flexible hoses are commonly installed near pumps, compressors, chillers, HVAC equipment, and mechanical systems where vibration isolation is critical.
Key Benefits
Excellent vibration absorption
Compact and space-saving design
High pressure capability
Easy installation
Ideal for equipment connections
When Should You Use a Bellows Expansion Joint?
Choose a Metallic Bellows Expansion Joint when:
✔ Your piping system experiences thermal expansion
✔ Significant axial, lateral, or angular movement is expected
✔ Pipe misalignment needs correction
✔ Long pipeline runs require movement compensation
✔ Structural stress reduction is necessary
When Should You Use a Braided Flexible Hose?
Choose a Metallic Braided Flexible Hose when:
✔ Equipment generates vibration or pulsation
✔ Installation space is limited
✔ High-pressure flexibility is required
✔ Noise reduction is important
✔ Connecting pumps, compressors, or HVAC equipment
Why Proper Selection Matters
Using the wrong flexible connector can lead to:
Premature equipment failure
Pipe stress and cracking
Excessive vibration
Increased maintenance costs
Reduced system efficiency
Proper evaluation of movement requirements, operating pressure, temperature, and installation constraints is essential before selecting a flexible joint.
